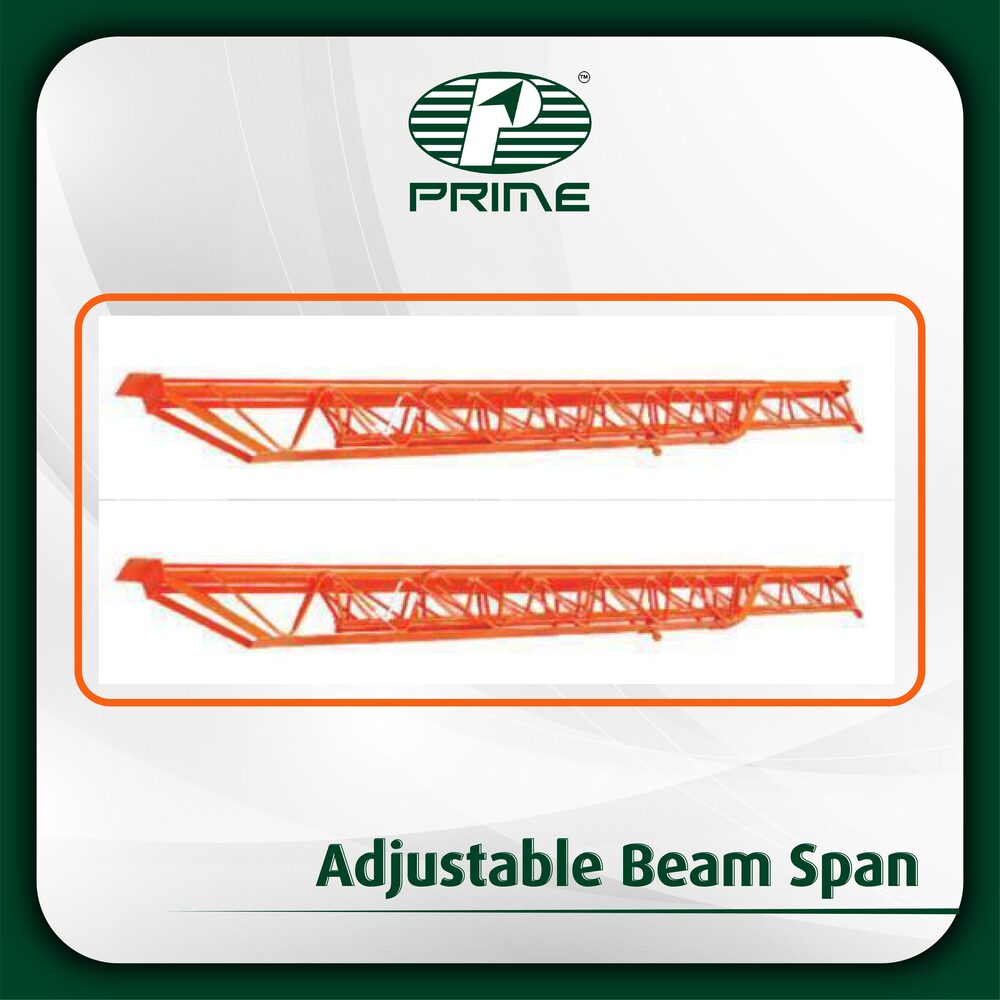

Adjustable Beam Span

Adjustable Beam Span
Adjustable Beam Span
Product Code : AB1
Product Description

We are engaged in offering high quality Adjustable Beam Span that is used as self supporting runners in the shuttering system. It is available in various specifications to meet the varied needs of our clients. Offered product is manufactured by our professionals with high precision using the finest quality raw material and latest technology. Prior to dispatching the delivery from our end, the offered Adjustable Beam Span is tested on various parameters to ensure its flawlessness.

Features:

  • Robustness

  • Durable finish standards

  • Optimum strength

  • High performance

Specification :

  • Main body of the Outer & Inner members are made up of 14/12 Gauge M. S. Sheet.
  • Bottom of the Outer member is made up of 50x6 mm M. S. Plate.
  • Bottom of the Inner member is produced using 40 x 40 x 6 mm 'T' Angle.
  • Lattice is made of 10mm dia. M. S Round Bar.
  • Bearing angle are of 75 x 75 x 8 mm size.



Sizes Min. Max. Self weight in kg.
ESO + ESI 1750 2600 26.00
SO + SI 2400 4100 40.00
SO + LI 3050 4650 46.00
LO + LI 3150 5200 52.00
2.0 x 2.0 2010 3250 35.50
2.0 x 2.5 2510 3850 40.50
2.5 x 2.5 2510 4250 44.00

Note: Weight indicates above are subject to tolerance of +/-3.0 %
