Cuplock Scaffolding System

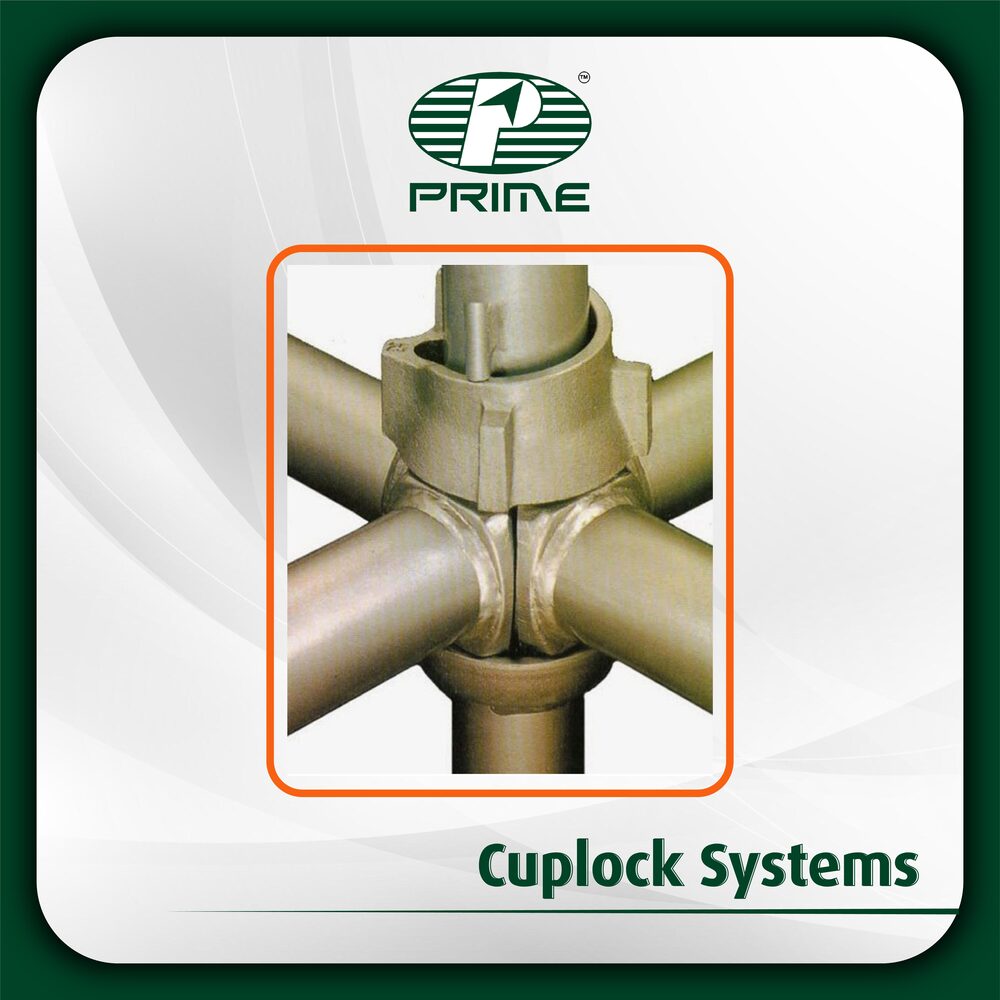

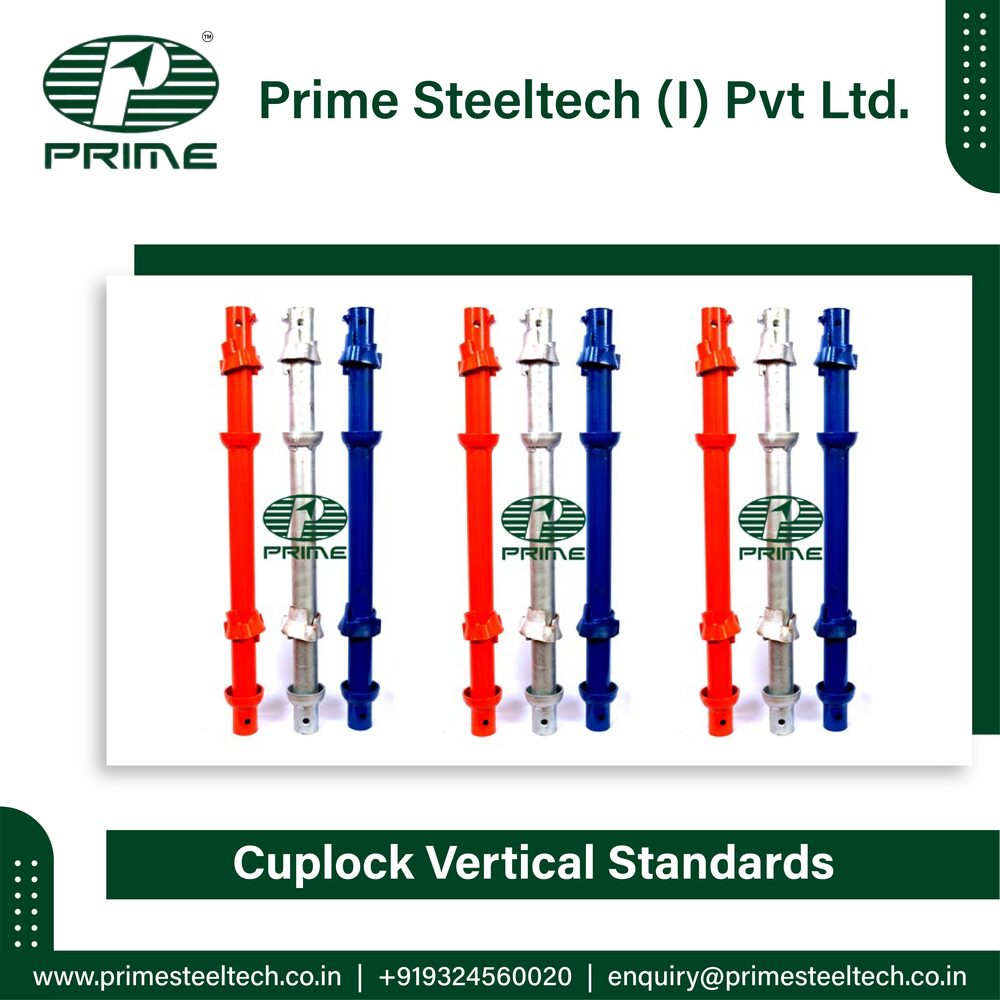

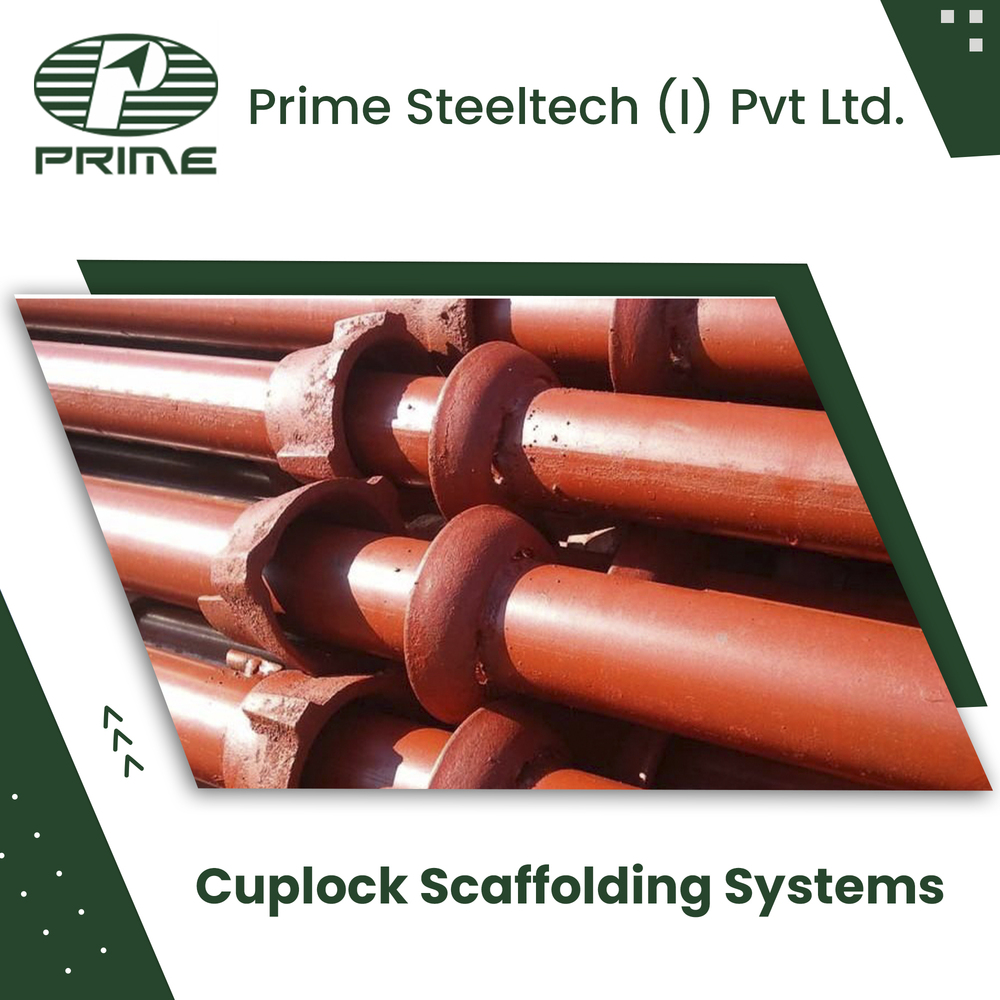

Cuplock verticals are the principal load bearing members comprising of steps of Top and Bottom Cups. The Bottom Cups are welded in position at 500mm distance. The verticals are made of 3mm thickness (48.3mm OD) pipes and are drilled for the fixing of Spigot joints at both the ends.
| Size (in mm) | Self-Weight (in Kg/Nos) | Cups (In no.) |
| 3000 | 13.65 | 6 |
| 2500 | 11.40 | 5 |
| 2000 | 9.15 | 4 |
| 1500 | 6.85 | 3 |
| 1000 | 4.60 | 2 |
| 500 | 2.30 | 1 |
 |
