H Frame Scaffolding System

H Frame Scaffolding System

54.00 - 68.00 INR

Product Details:

  • Prop Head Angle Support
  • Constitute Standard
  • Components Couplers
  • Application Structure Pipe, Construction
  • Click to view more
X

Price And Quantity

  • 54.00 - 68.00 INR

Product Specifications

  • Angle Support
  • Standard
  • Structure Pipe, Construction
  • Couplers

Trade Information

  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India

Product Description

H Frame Scaffolding System, offered by Prime Steeltech (I) Pvt. Ltd is apt for the surfacing of buildings, cladding of the glass, giving support to windows as well as industrial structures etc. This is a convenient and economical solution, which can be reframed and framed as per the convenience. H Frame Scaffolding System is simple to dismantle and erect. It can be managed by the unskilled laborers as well, as it has simple mantling and dismantling process. Another good thing about the provided system is the flexibility it provides to the users. It can be reframed as per the different tastes and convenience. This is offered with two stiff welded frames; horizontal and vertical.

Key Points:
  • Offered with a versatile and distinctive shape that allows it to be utilized for several purposes.
  • Apart from building and glass cladding, is applicable for various other purposes.
  • H frame scaffolding system is highly commended in different work fields.
  • Mainly used for mason scaffolding as well as mobile scaffold tower, Capable to be used in a user friendly manner.

Specification:

The verticals are made of 40NB Medium/ Heavy class pipes and Horizontals are made of 40NB Light/ Medium class pipes. In order to connect two 'H' frames vertically 50NB Socket or 38OD Spigots are welded at one end of both the verticals. Cross Bracings are made of 25/20NB Medium or Light class pipes.

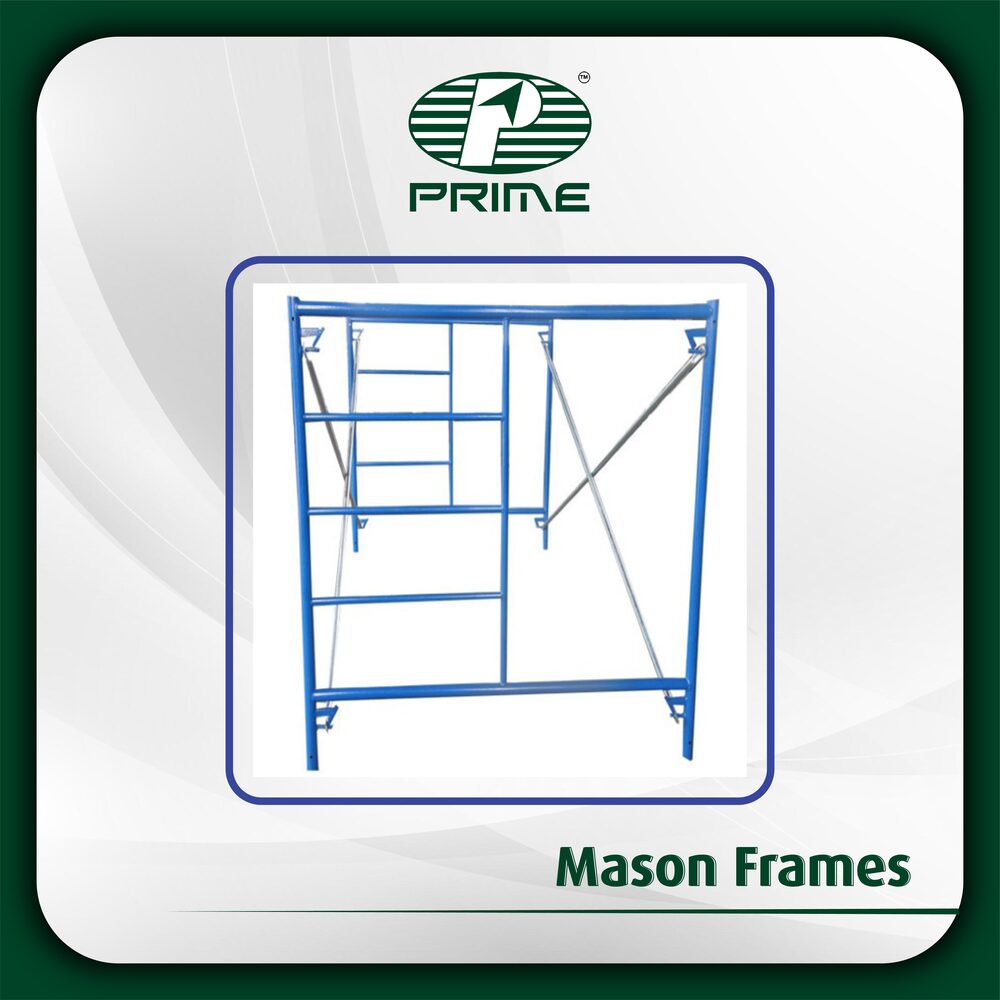

Apart from the regular type of 'H' frames, we also provide Walkthrough Frames and Ladder / Mason Frames. Walkthrough frames provide an easy access for human mobilization with clear head room throughout the erected scaffolding structure. Ladder / Mason frame facilitates working platforms at different heights by fitting walkway planks on Horizontals located at multiple levels of the frame.

Vertical Member 48.3 mm OD x 3 mm
Horizontal Member 48.3 mm OD x 3 mm
Socket Member 60.3 mm OD x 3 mm
Cross Bracing MS TUBE 25 mm

An assembly that consists of rigid welded frame of two Vertical and Horizontal pipes which are interconnected by scissor type Cross Braces through Pins and Spring Clips is called as an 'H' Frame Scaffolding System.

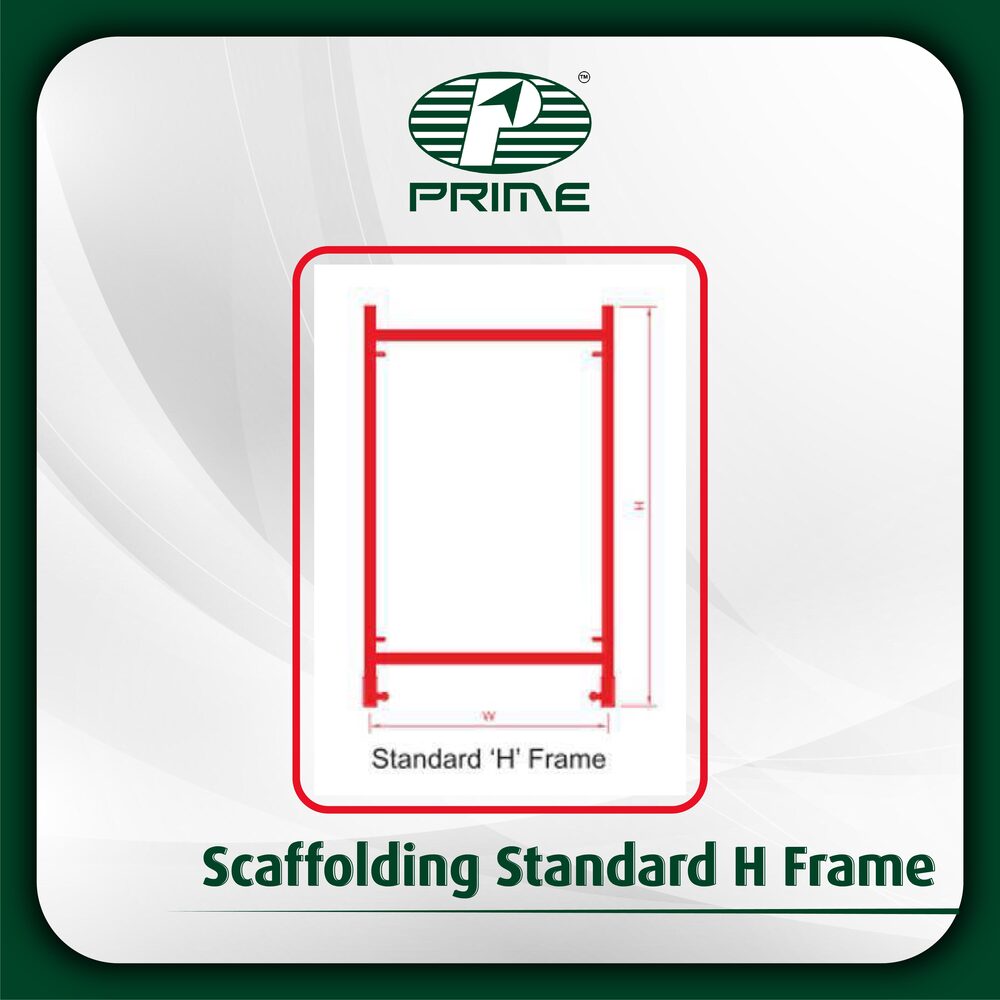

Sizes of ‘H’ frames

Size (HxW) in mm

Self-weight in kgs/nos.

2000x1000

21.40

2000x1250

23.00

2000x2000

28.00

2400x1000

28.60

2400x1250

30.35



Size (AxB) in mm

Spacing in mm

Length (L) in mm

Pipe dia

Self wt. In kgs

2500x1500

2500

2950

25NB

20NB

9.25

7.50

2000x1500

2000

2550

25NB

20NB

8.00

6.45

1250x1500

1250

2000

25NB

20NB

6.35

5.15



PRIME STEELTECH (I) PVT. LTD.
