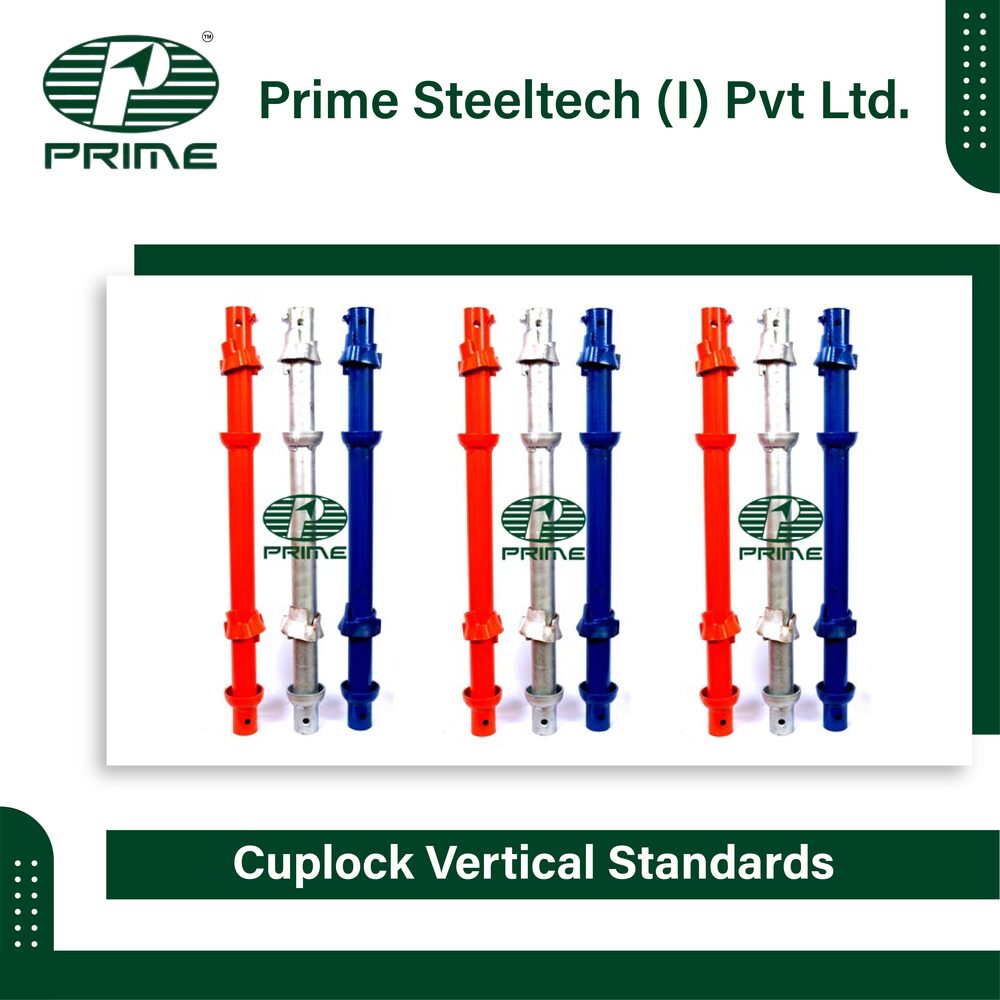

Cuplock Verticals Standards

Cuplock Verticals Standards

46 INR/Kilograms

Product Details:

X

Cuplock Verticals Standards Price And Quantity

  • 46 INR/Kilograms

Cuplock Verticals Standards Trade Information

  • 100 Per Week
  • 1 Week

Product Description

We are an eminent entity engaged in offering Cuplock Verticals Standards that consists of sets of Top and Bottom Cups. The bottom cups are welded in position at 500/1000 mm distance and the top cups are movable and retained by a fix stop. These are manufactured by our professionals using the best quality raw material and modern methodology as per the set industry standards. The offered products are available in various specifications to meet the diverse needs of the clients. We are offering these Cuplock Verticals Standards at industry leading prices.

Features:

  • Corrosion resistant surface finish
  • Durability
  • High strength
  • Robustness

Load Carrying Capacity of Cuplock Verticals:

Bracing Length Permissible load in Tonns (Yst 210 N/mm2)
Medium class Heavy Class
500 4.66 6.32
1000 4.12 5.57
1500 3.54 4.74
2000 2.67 3.50


Note : The above values are indicatives and not accurate. We request you to re-confirm these loads before finalizing your cuplock design.

Sizes of Cuplock Verticals /Standards:

Size in mm. No. of cups @ 500/1000 mm Self - Weight in Kg./Nos.
3000 6/3 13.65
2500 5/3 11.2
2000 4/2 9.15
1500 3/2 6.85
1000 2/1 4.6
500 1/1 2.35


Note : Weights indicated above are subject to tolerance +/- 3.0%

Specification

Bracing length

500 - 2000 mm

No of Cups

1 - 6

Weight

2.35 - 13.65 Kg

Size

500 - 3000 mm

Material

Steel

Surface Type

Hot Dipped Galvanized
